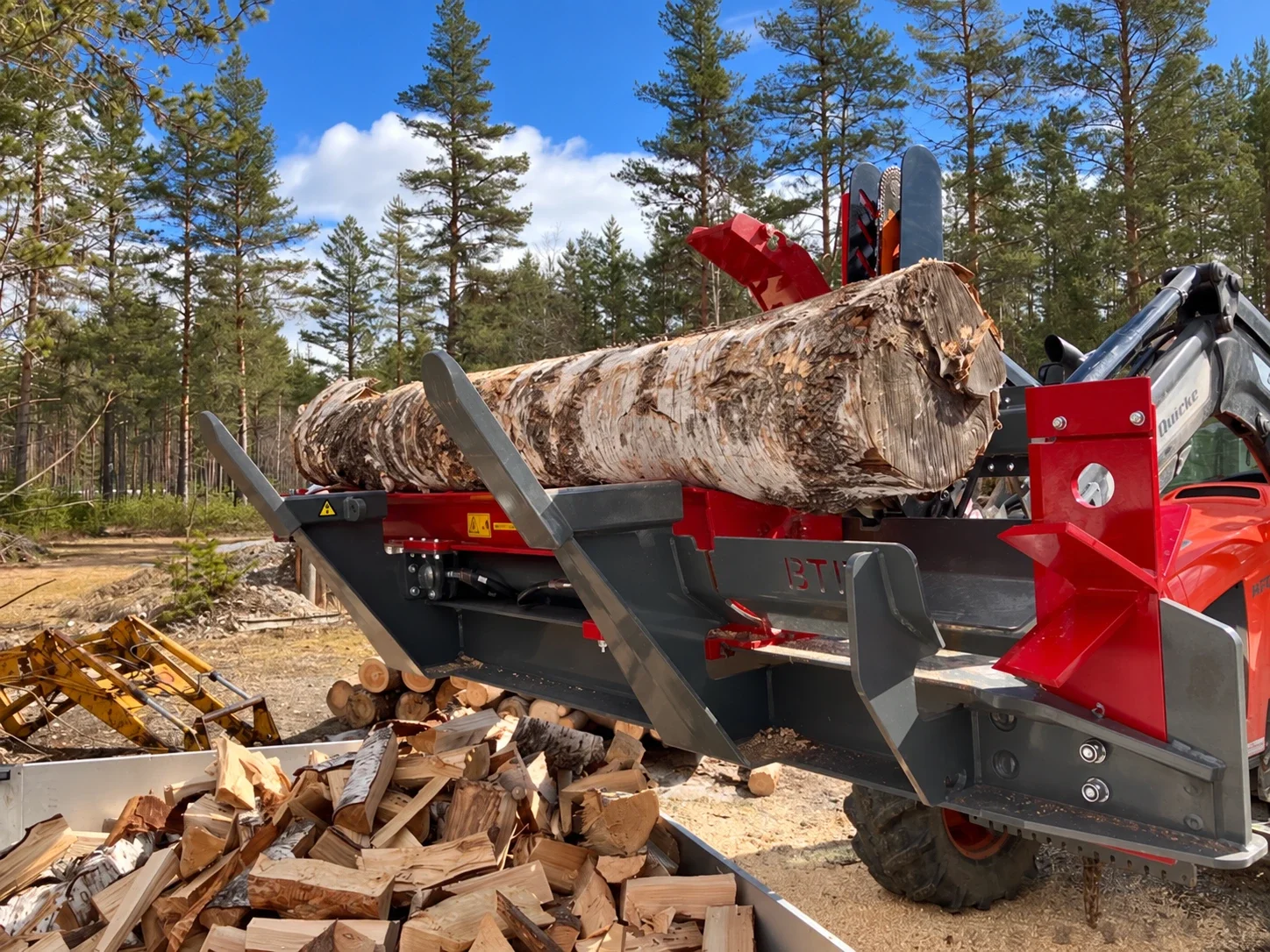

Compact firewood processor for professional performance

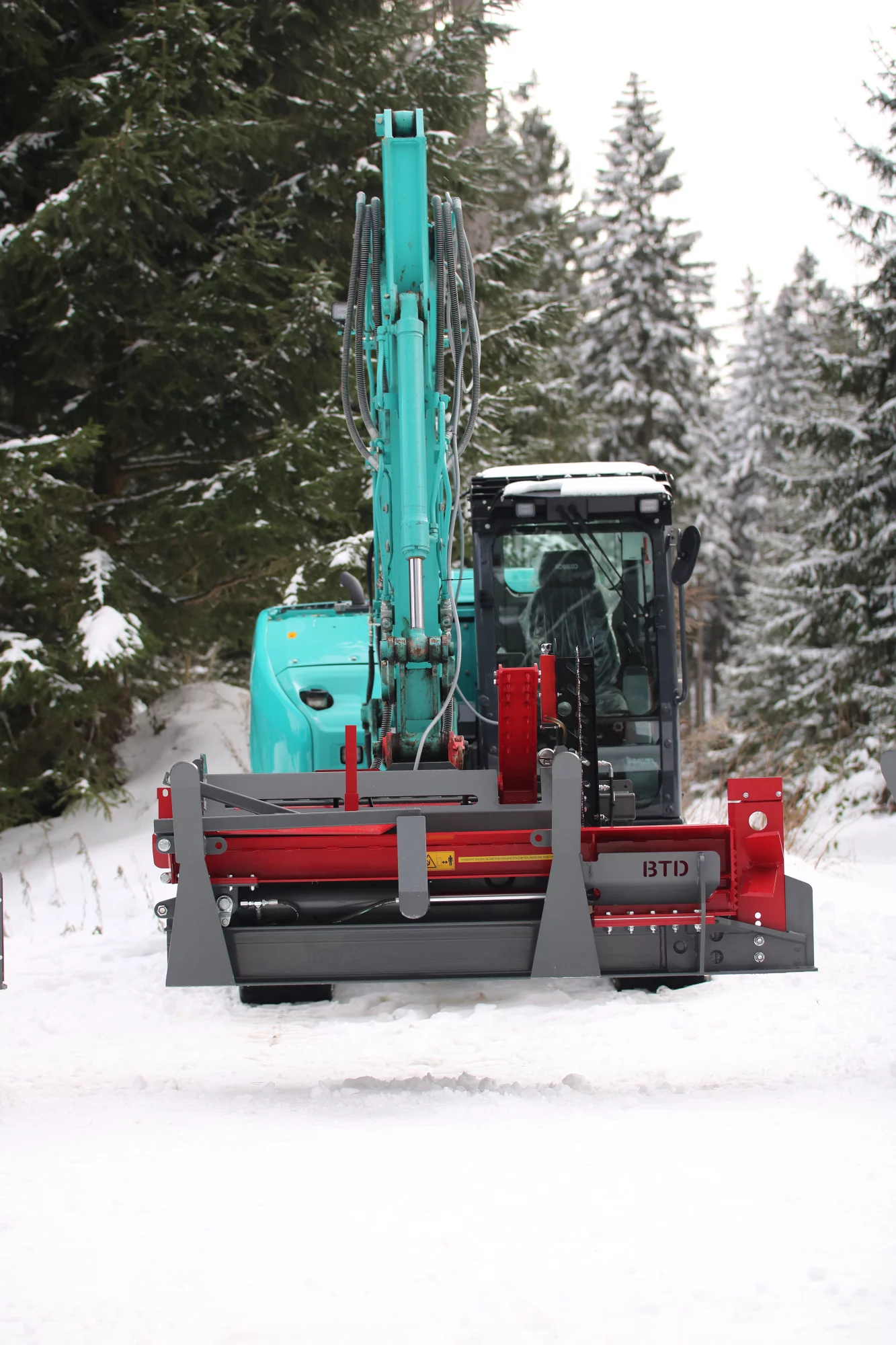

The BTD PROcompact is a compact professional firewood processor for the efficient processing of roundwood. Thanks to its compact design, the machine is ideally suited for use with smaller and lighter carrier vehicles, such as mini loaders, mini excavators and compact tractors.
With a capacity of approximately 3–5 m³ per hour, a log diameter of 15–40 cm and a splitting force of 13–15 tonnes, the PROcompact combines compact dimensions with professional performance. Ideal for working in locations where space, flexibility and efficient operation are important.
Up to 15 tonnes of splitting force
Processing capacity up to 5 m³ per hour
Suitable for logs up to 40 cm in diameter and 4 metres in length
Mechanically adjustable splitting knives
Easy operation by a single operator
The PROcompact can be configured for different applications and desired firewood sizes. In addition to the standard equipment, various splitting knives and technical options are available. Below you will find an overview of the splitting options, cutting lengths, hydraulics, control system, operation and other important technical features of the PROcompact.
Various splitting knives for the desired firewood size
Faster sawing and splitting for shorter cutting lengths
Continuously adjustable cutting length from 23–50 cm
Connection via the hydraulic system of the carrier vehicle
PLC control with display and wireless operation
Log positioning and splitting integrated into one system
Technical specifications of the PROcompact

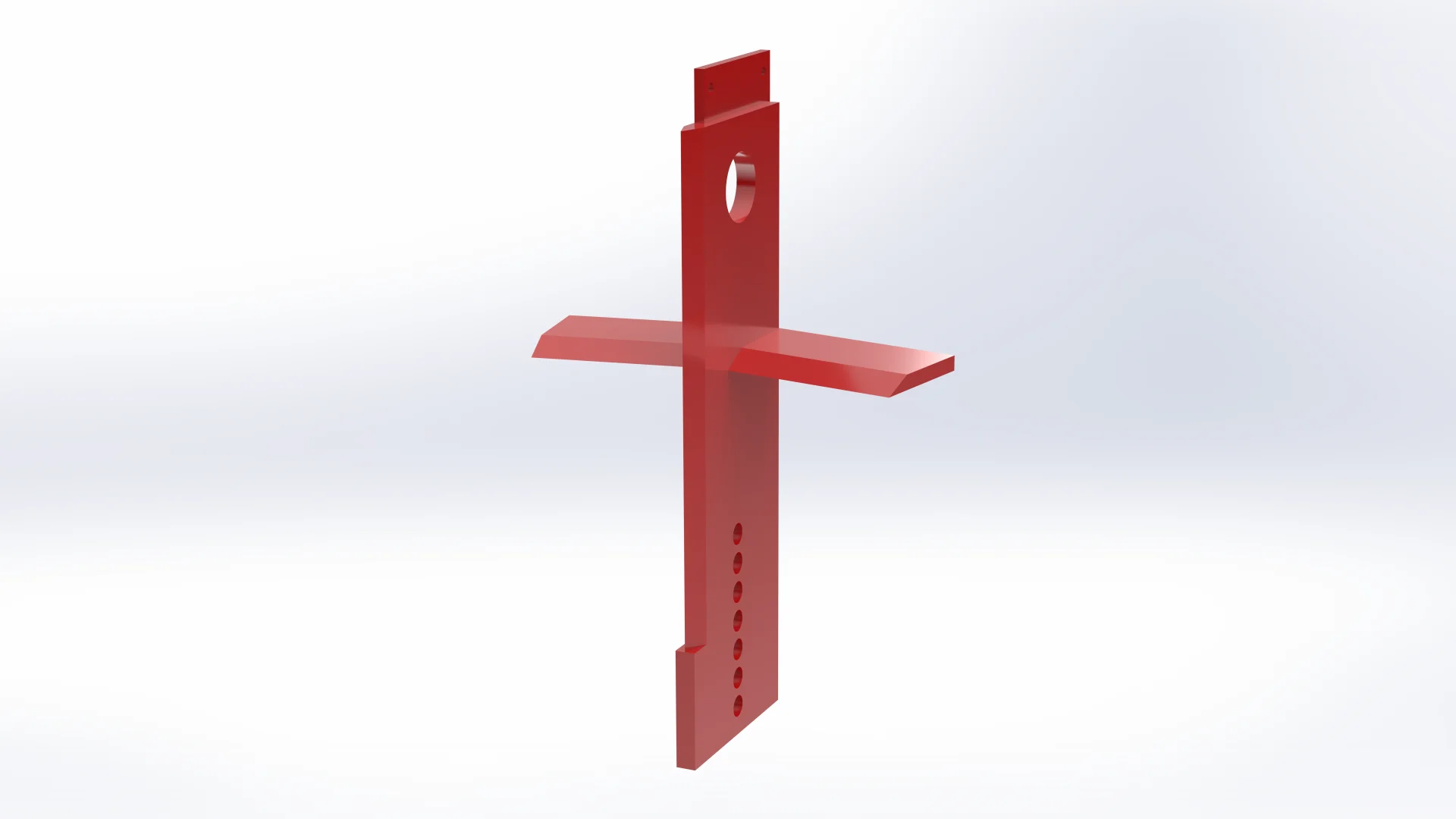

For larger pieces of firewood, the PROcompact can optionally be equipped with a 4-way splitting knife. This splits each log section into four pieces.
The splitting knife is manually adjustable and is secured in the desired position with a locking pin.
Available as an option for the PROcompact.

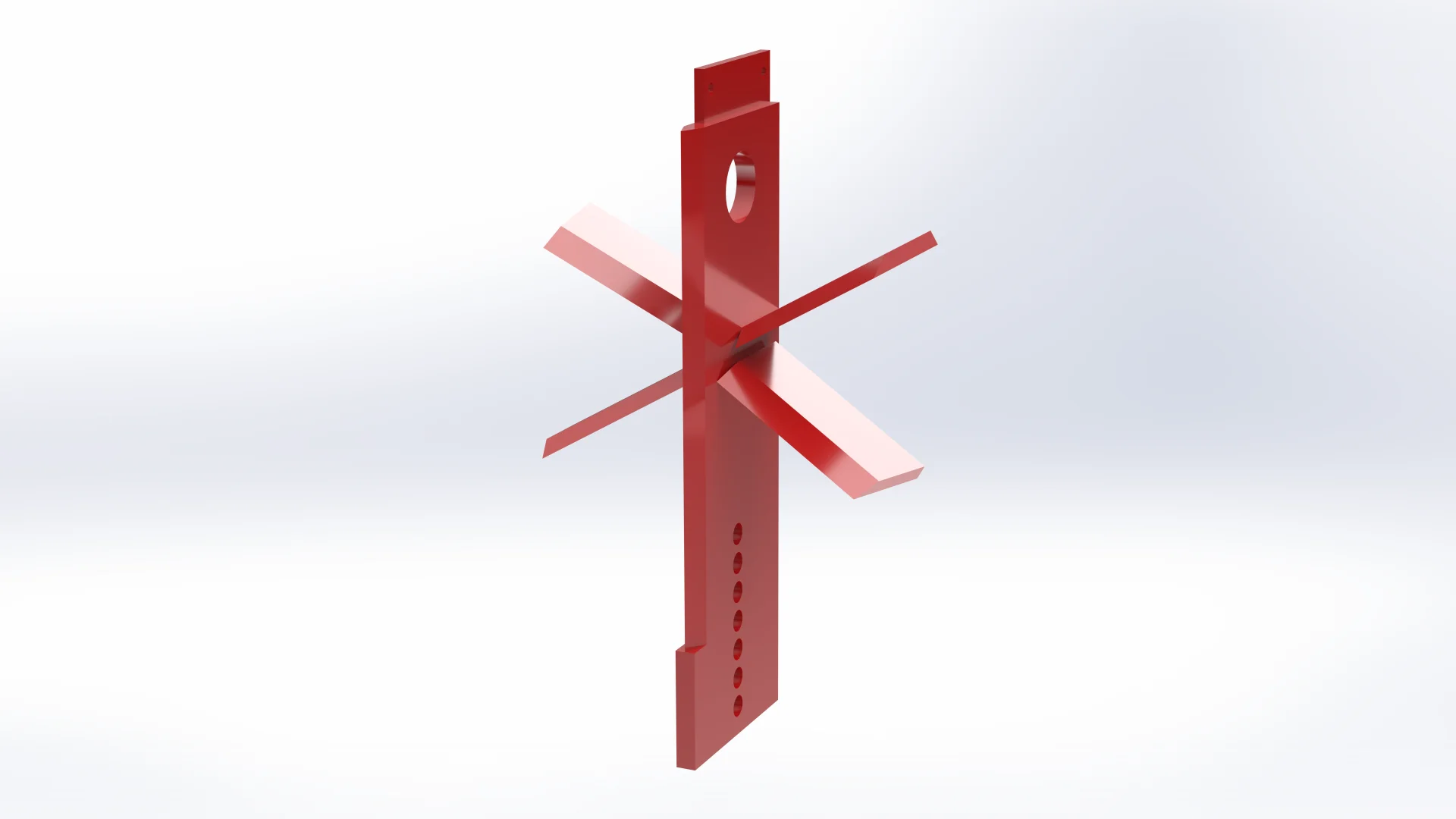

The 6-way splitting knife divides each log section into six pieces and is suitable for efficiently processing firewood into a practical size.
The splitting knife is manually adjustable and is secured in the desired position with a locking pin.
Standard equipment on the PROcompact.

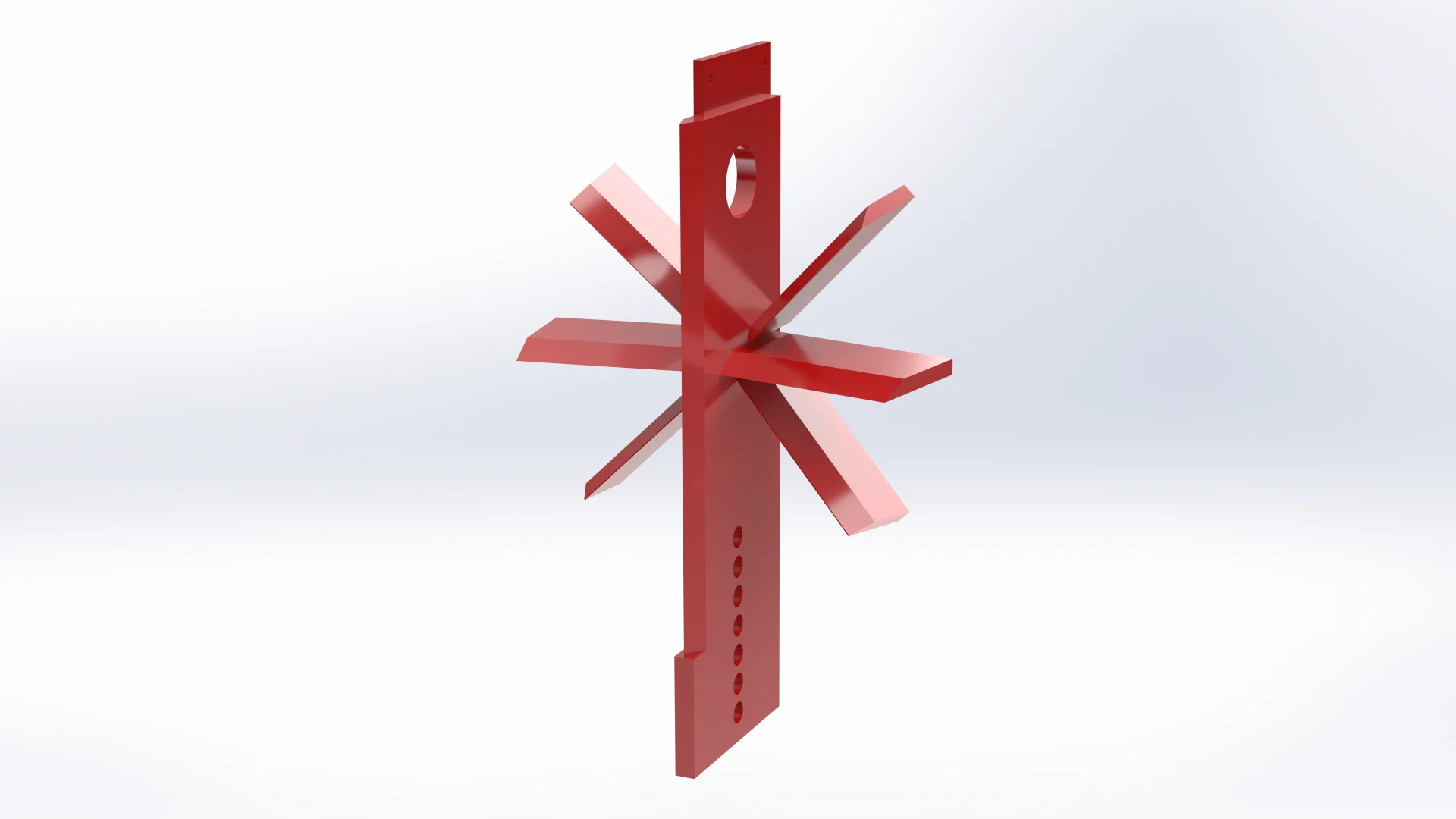

The 8-way splitting knife divides each log section into eight pieces and is suitable when more finely split firewood is required.
The splitting knife is manually adjustable and is secured in the desired position with a locking pin.
Available as an option for the PROcompact.
With the SHORT/LONG function, the PROcompact can be adjusted to the desired firewood length. The operator can easily select between SHORT and LONG mode via the controls.
For cutting lengths of 23 to 35 cm, the machine cycle can be optimised. Depending on the selected cutting length, this allows the PROcompact to operate approximately 20% faster.
Easy adjustment via the Siemens LOGO! control system.
The desired firewood cutting length can easily be set via the controls from 23 to 50 cm. This allows the PROcompact to be quickly adjusted to different required firewood lengths.
The selected cutting length is shown on the Siemens LOGO! display. The setting can easily be adjusted for different firewood lengths.
Flexibly adjustable for different firewood lengths.
The PROcompact is equipped with a hydraulic manifold specifically developed by BTD. The hydraulic functions, limits and settings are integrated into this manifold.
The hydraulic system is preset by BTD and configured specifically for the machine. This allows the PROcompact to be put into operation immediately after connection to a suitable carrier vehicle.
Robust technology, developed for reliable professional use.
The BTD PROcompact is equipped with a safe and user-friendly PLC control system. The machine is operated using a wireless remote control with two joysticks, allowing a single operator to control the main machine functions.
The automatic sawing and splitting cycle can be started at the push of a button. The display can be used to set parameters including the desired cutting length and the number of log sections to be processed.
The automatic machine functions are safeguarded to prevent unintended or incorrect operation from immediately causing unwanted machine movements.
Wireless control with automatic sawing and splitting cycle as standard.
The PROcompact is operated as standard using a wireless remote control with two joysticks. This allows a single operator to easily and clearly control the main functions of the firewood processor.
The joystick control allows the machine functions to be operated precisely without the operator having to remain next to the machine at all times. This provides greater freedom of movement and contributes to an efficient workflow.
Simple and intuitive operation by a single operator.
On BTD machines, we refer to the complete movable structure on which the log rests as the press block. This press block is driven by a hydraulic cylinder and combines several functions within the sawing and splitting process.
The press block positions the log during processing and supports the controlled feeding and splitting of the wood. This allows the machine to operate efficiently and accurately.
The PROcompact is equipped as standard with a press block suitable for logs up to 3 metres in length.
The PROcompact is designed as standard for logs up to 3 metres in length. For processing longer logs, the machine can optionally be equipped with a foldable extension.
With this extension, logs up to 4 metres in length can be processed. The extension is integrated into the machine and can be folded away when not required.
Available as an option for the PROcompact – for log lengths up to 4 metres.
Below you will find the key technical specifications of the BTD PROcompact.
| Feature | Specification |
| Splitting force | 13–15 tonnes |
| Log diameter | 15–40 cm |
| Log length capacity | max. 3 metres, 4 metres optional |
| Cutting length | 23–50 cm |
| SHORT/LONG | 23–35 cm |
| Capacity | approx. 3–5 m³/hour |
| Standard splitting knife | 6-way |
| Optional splitting knives | 4-way and 8-way |
| Splitting knife adjustment | Mechanical |
| Hydraulic flow | min. 35 l/min, limited |
| Hydraulic pressure | 210–250 bar |
| Hydraulic connections | 1/2″ pressure + 1/2″ return + 1/4″ leak line |
| Drive | Hydraulic, via the hydraulic system of the carrier vehicle |
| Control system | PLC with display |
| Wireless control | 2 joysticks + cycle button |
| Electrical connection for control system | 3-pin, 12 Vdc / 10 A; 24 Vdc optional |
| Operation | 1 operator |
| Suitable carrier vehicles | Mini excavators, mini loaders and other suitable compact carrier vehicles |
| Weight without options | approx. 805 kg |
View the detailed technical specifications side by side, including capacity, hydraulics, wood processing, control system, splitting system, construction and sawing technology.
Which vehicles are suitable for a BTD attachment firewood processor? Important factors are hydraulic oil flow, working pressure, lifting capacity, stability and a compatible mechanical attachment. The PROcompact requires at least 35 l/min, while PROcompact-S and PROplus require at least 55 l/min. Depending on the model, suitable carrier vehicles can include tractors, loaders, telehandlers, excavators and compact loaders.
The BTD PROcompact, PROcompact-S and PROplus differ mainly in hydraulic requirements, production capacity, splitting force and maximum log diameter. PROcompact requires at least 35 l/min and processes logs up to about 40 cm, while PROcompact-S requires at least 55 l/min and also handles up to about 40 cm. PROplus requires at least 55 l/min, processes logs from about 17 to 45 cm and provides 16–20 tonnes of splitting force. Production capacity is approximately 3–5, 4–7 and 4–9 m³/h respectively.
The splitting knife determines how the log is divided and how efficiently the available splitting force is used. Depending on the model, BTD offers 4-, 6-, 8- and 12-way splitting knife options. The PROcompact is supplied with a 6-way knife as standard, the PROcompact-S with an 8-way knife and the PROplus with a 6-way knife. The best choice depends on wood species, log diameter, desired firewood size and production capacity.
BTD firewood processors allow the cutting length to be adjusted from 23 to 50 cm in 1 cm increments. The selected length is set precisely through the machine control system. Depending on the model and configuration, the SHORT/LONG function can reduce unnecessary cylinder travel when processing shorter firewood lengths, helping to improve cycle efficiency and production capacity.
