What is an BTD attachment firewood processor?

How does a firewood processor work?

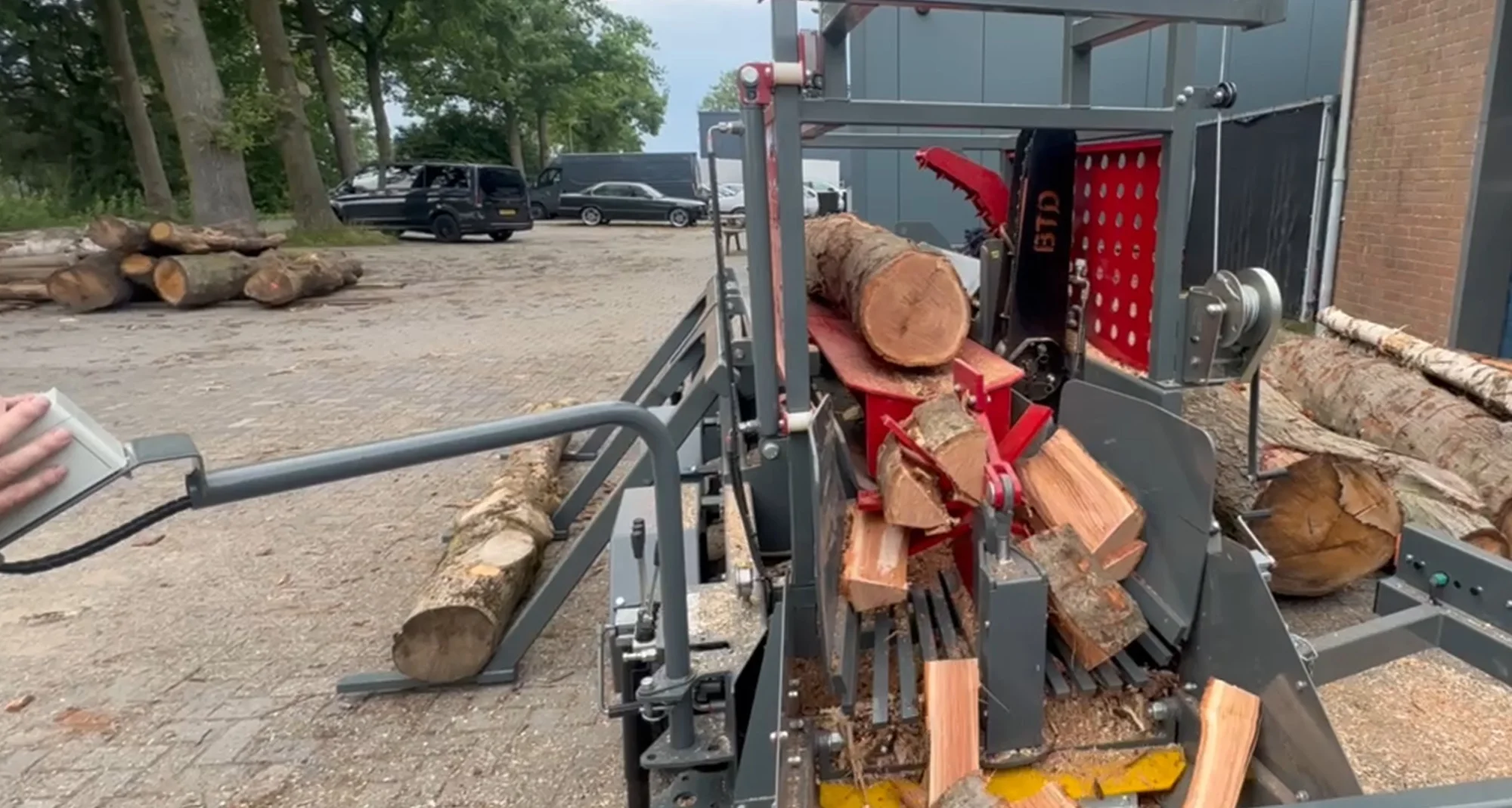

A firewood processor combines several stages of firewood production in one process. Depending on the machine and working conditions, the process is as follows:

1. Log infeed: the log is fed into the machine and positioned.
2. Cutting: the log is cut to the selected firewood length.
3. Splitting: the cut section is pushed through the splitting knife and split into several pieces.
4. Discharge: the processed firewood is discharged for further handling, storage or transport.

Because sawing and splitting take place in one workflow, a single operator can process large quantities of firewood. Production capacity depends on factors including the machine model, the timber, log diameter and the selected cutting and splitting method.

Attachment firewood processor or mobile firewood processor?

An important consideration is how the firewood processor is powered and used. BTD offers two different concepts.

Attachment firewood processor

An attachment firewood processor is connected to a suitable carrier vehicle and uses the vehicle’s hydraulic system for power. This allows the machine to be used with, for example, an excavator, loader, tractor or another suitable carrier vehicle.

The BTD PROcompact, PROcompact-S and PROplus are designed according to this principle. The advantage is that an existing carrier vehicle can be used not only to power the machine, but also to position and move it.

Mobile firewood processor

The BTD TrailerPlus-M has its own drive and hydraulic system and is therefore not dependent on the hydraulic capacity of a carrier vehicle for production.

The machine is built on a trailer chassis and is equipped with its own 40 hp Briggs & Stratton petrol engine with EFI and its own hydraulic triple-pump system. This allows the complete machine to be transported between different work locations and operated independently on site.

Which BTD firewood processor is right for your work?

BTD offers four firewood processors, each designed for different applications. The right choice is primarily determined by the required production capacity, log diameter, available hydraulics, carrier vehicle and need for mobility.

View all BTD firewood processors →

What should you consider when choosing a firewood processor?

Maximum production capacity is not the only factor that determines which machine is best suited to your work. The way you feed, process and move the timber also plays an important role.

• Production capacity: how many cubic metres of firewood do you want to produce per hour or per year?
• Log diameter: which diameters do you most commonly process in practice?
• Log length: which lengths need to be processed without additional handling?
• Cut length: which firewood lengths do you want to produce?
• Splitting force and splitting knife: which types of timber and required firewood sizes need to be processed?
• Hydraulic capacity: does the carrier vehicle provide sufficient hydraulic flow and working pressure?
• Mobility: do you mainly work at one location, or do you want to transport the complete production setup easily between different locations?
• Operation: how efficiently can one operator manage the entire workflow?

Technology for efficient firewood production

Professional firewood production is not only about speed. A well-matched combination of sawing technology, splitting force, log infeed, control system and operation ultimately determines how efficiently the complete workflow performs.

Depending on the model and configuration, BTD firewood processors are therefore equipped with different splitting knives, adjustable cut lengths, PLC control with display and wireless operation. Functions such as SHORT/LONG can further optimise the workflow when producing shorter firewood lengths.

What applications is a firewood processor suitable for?

A professional firewood processor can be used in a wide range of situations. The optimum machine and workflow depend on the business and application.

• Firewood producers: for efficient and continuous production of ready-for-sale firewood.
• Forestry companies: for processing logs close to where the timber is available.
• Contractors and rental companies: for flexible professional use at different customer sites and projects.
• Mobile firewood production: for situations where the machine is brought to the timber instead of transporting the timber to a fixed production site.

View applications for BTD firewood processors →

Why choose a BTD firewood processor?

BTD Technics develops and manufactures firewood processors in the Netherlands for professional use. The machines are designed with a focus on robust construction, straightforward operation, high availability and an efficient workflow.

Because BTD offers both attachment machines and a self-powered mobile machine, the solution can be matched to the available carrier vehicle, required production capacity and the way the business organises its firewood production.
